RAM Universal Marine Fish Finder Mount - D Size Short

Overview

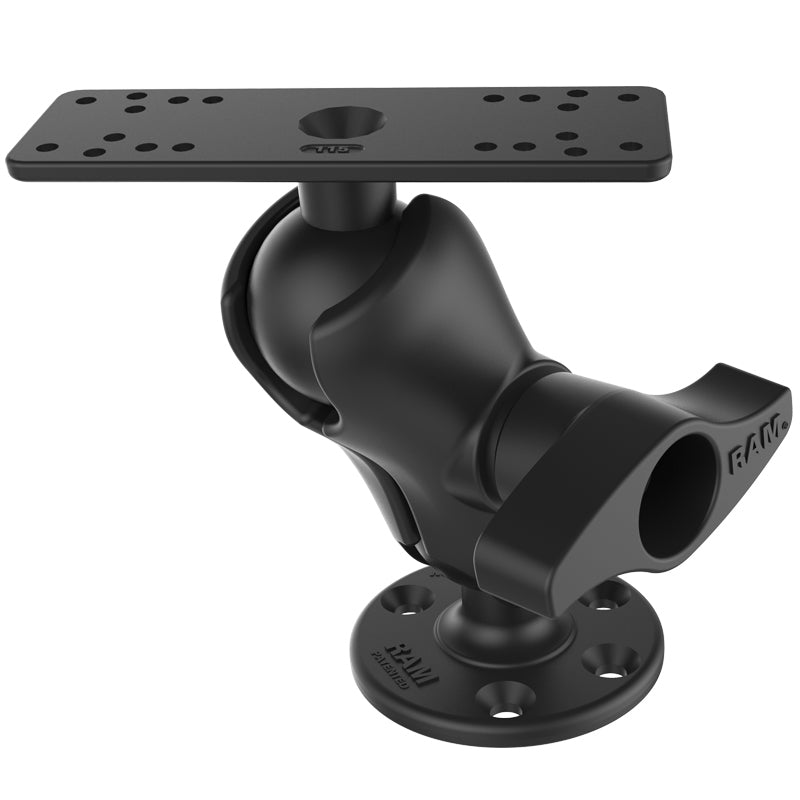

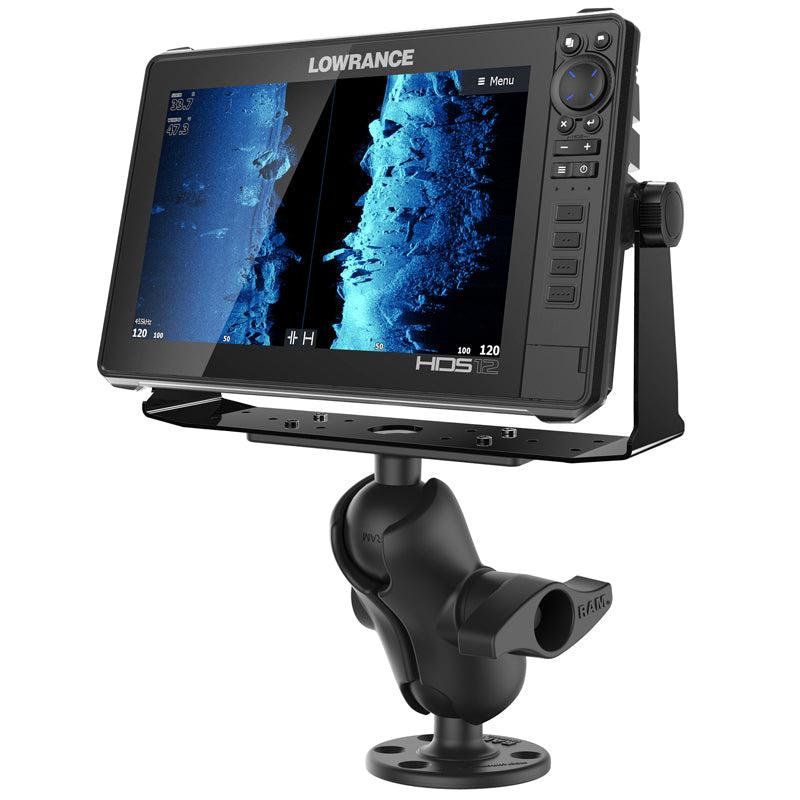

The RAM-D-115-C consists of a base with a 2.25” diameter D size ball, a short arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.

 Features

• Complete flat surface, drill-down mounting solution with short length D size socket arm compatible with 9"-12" fishfinder gimbal brackets
• RAM^® Mounts ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

Product dimensions:
Overall Height: 7.325"
socket to socket length: 3.6"

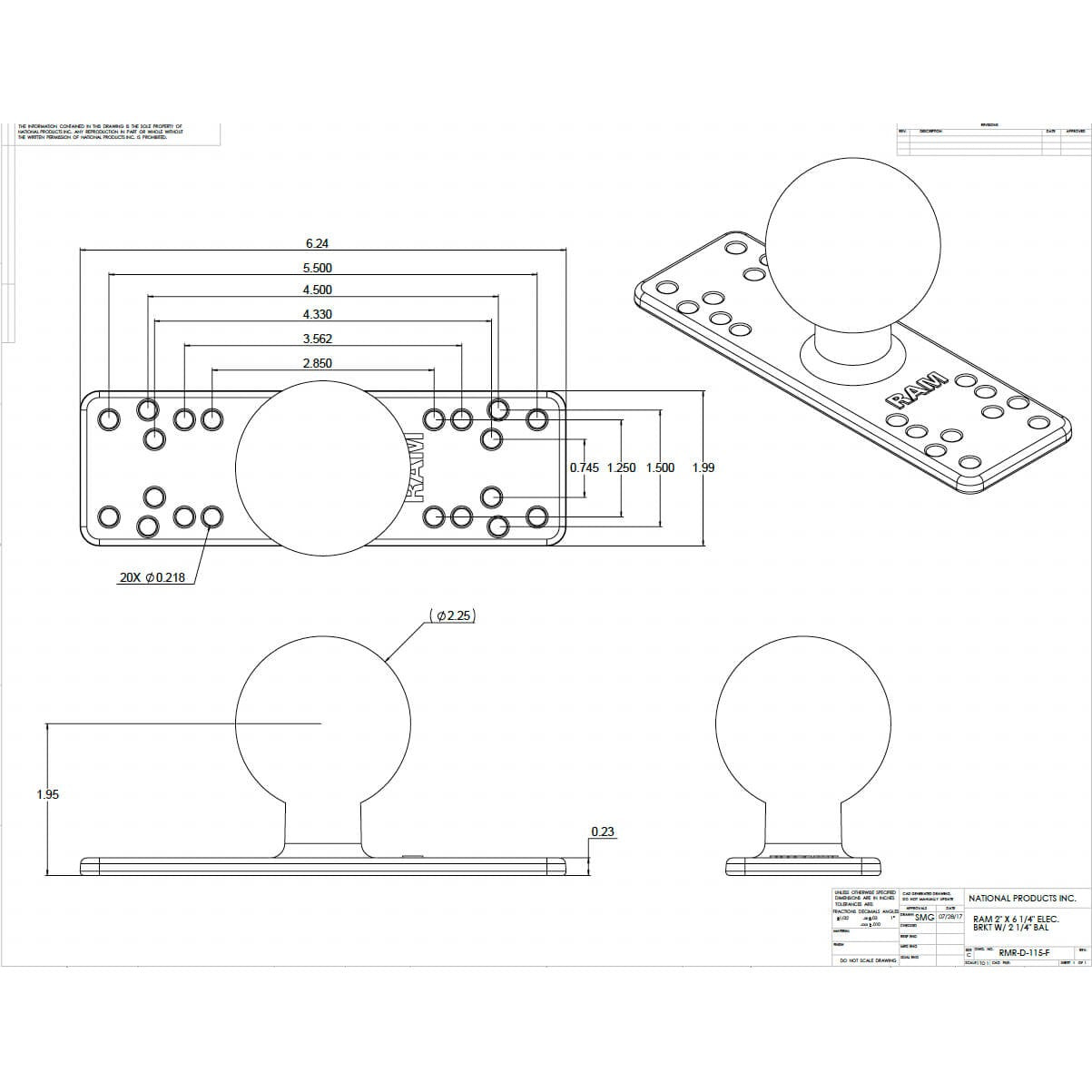

Hole pattern: See Drawings

Plate size
Top Plate: 6.25" x 2"

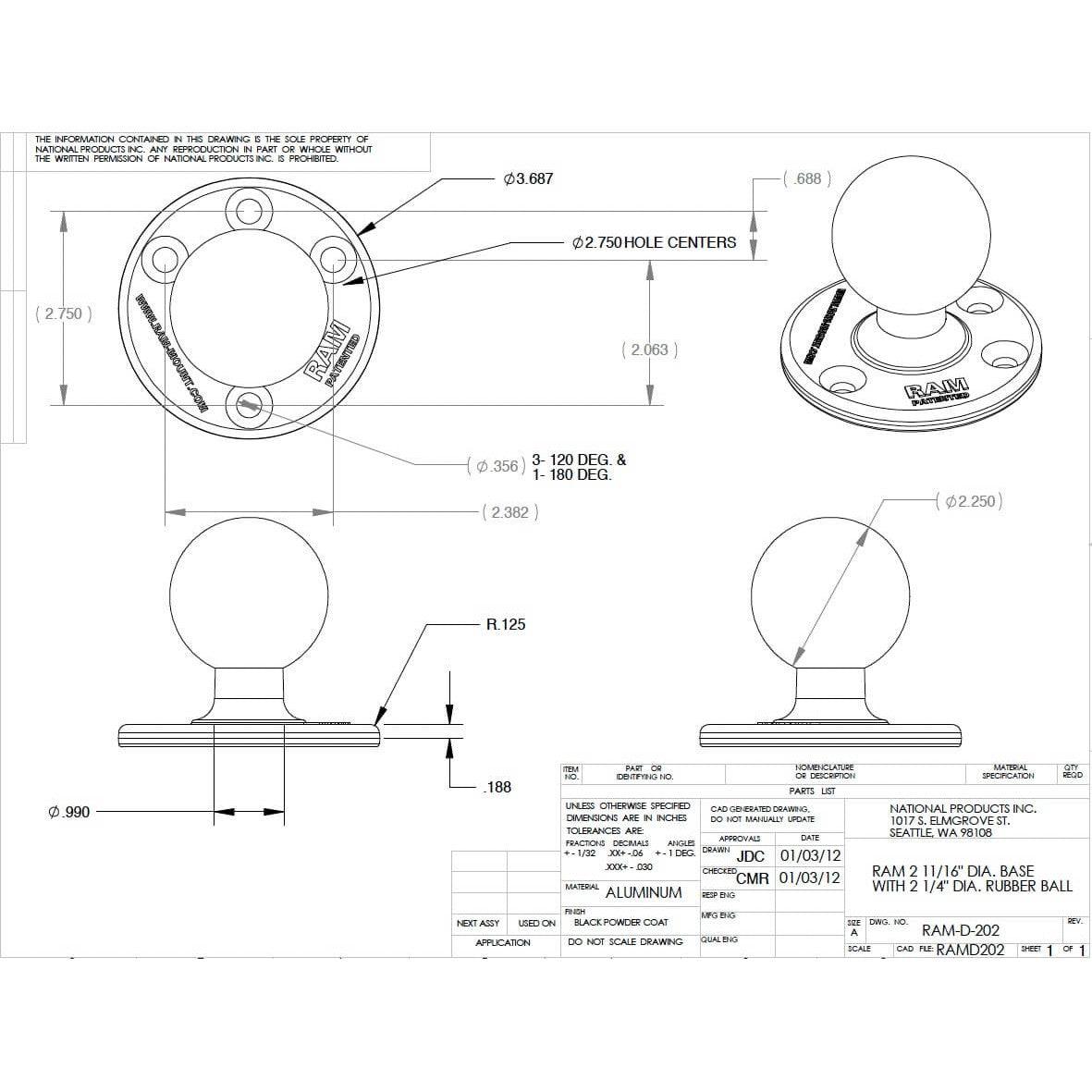

Bottom Plate: 3.68" Diameter

Ball size: D Size (2.25")

Weight capacity
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

Materials: Marine-grade aluminum

Weight: 3.2 lb

Additional Information

The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
