Humminbird Mega 360 IMAGING - No Mount

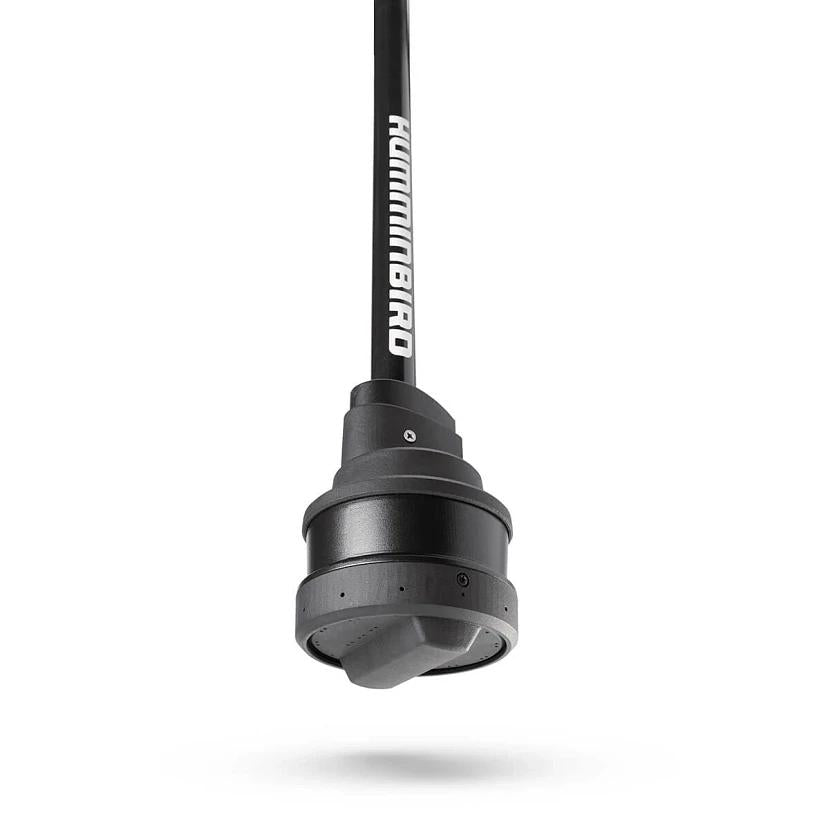

Humminbird MEGA 360 Imaging – No Mount shows you structure and fish in every direction—so you can decide where to cast with confidence. This MEGA 360 Imaging transducer features a 50" shaft and delivers a continuous, detail-rich 360° view around your boat. Choose your own mounting solution to run it exactly where and how you want.

Key Features

• All-around awareness: See structure and fish in every direction to stay on targets longer.
• Choose your mount: Pick the mounting hardware that fits your boat and setup.
• Flexible sonar source: Switch between 360 Imaging and Side Imaging modes as needed.
• Network sharing: Share 360 or Side Imaging views to compatible units over Ethernet.

What’s Included

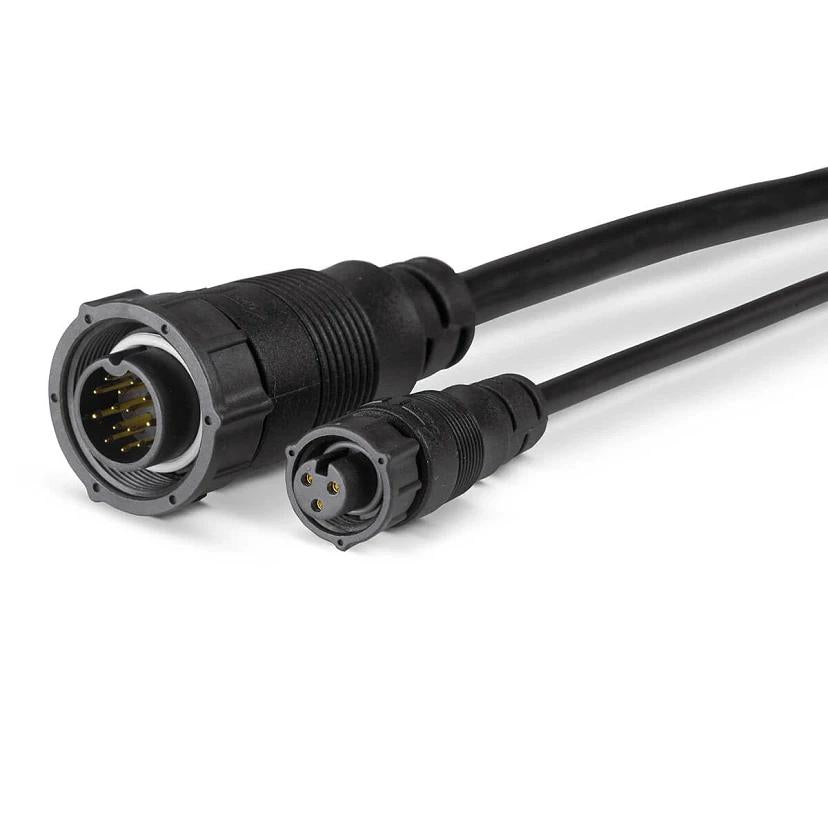

• MEGA 360 Imaging pod and 50" shaft assembly with power and transducer cables
• 10' MEGA 360 power cable
• 10' HELIX transducer extension cable
• 10' SOLIX transducer extension cable

Compatibility

HELIX (select models):
HELIX 15 MEGA SI+ GPS G4N; HELIX 15 MEGA DI+ GPS G4N;
HELIX 12 MEGA SI+ GPS G4N/G3N; HELIX 12 MEGA DI+ GPS G4N/G3N;
HELIX 10 MEGA SI+ GPS G4N/G3N; HELIX 10 MEGA DI+ GPS G4N/G3N;
HELIX 9 MEGA SI+ GPS G4N/G3N; HELIX 9 MEGA DI+ GPS G4N/G3N;
HELIX 8 CHIRP MEGA SI+ GPS G4N; HELIX 8 MEGA SI+ GPS G3N.

Other fish finders: All XPLORE, APEX, and all SOLIX G2/G3 models.

Mounting Options

Works with Ultrex MEGA 360 Hardware Kit and MEGA 360 Ice Adapter (sold separately).
Notice: Product requires an accessory or 3rd-party mounting solution to achieve intended performance.

Sonar Modes & Networking

Run MEGA 360 mode for full-circle coverage or use the transducer as a Side Imaging source. When connected over Ethernet, these views can be shared to other compatible Humminbird models on the network.

Tech Specs — Humminbird MEGA 360 Imaging – No Mount

• Type: MEGA 360 Imaging transducer
• Shaft length: 50"
• Coverage: 360° around the boat
• Included cables: 10' power; 10' HELIX transducer extension; 10' SOLIX transducer extension
• Modes: MEGA 360 Imaging, Side Imaging source
• Networking: Ethernet sharing to compatible models
• Mount: Not included (requires accessory or 3rd-party solution)
• Warranty: 2-Year Limited Warranty

Ready for precise 360° awareness and flexible rigging? Add to cart.
