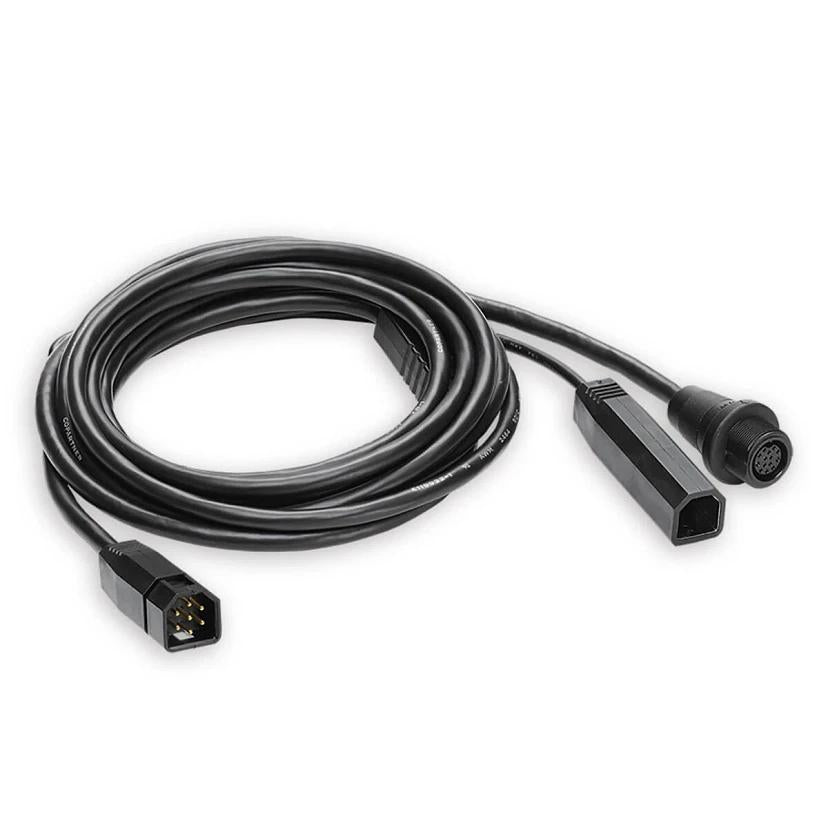

9 M360 2DDI Y – MEGA 360 & 2D/MDI Y Cable

Humminbird 9 M360 2DDI Y – MEGA 360 & 2D/MDI Y Cable lets you run MEGA 360 Imaging together with an external 2D/MDI transducer on a single compatible HELIX head unit. Clean rigging, one port used, and full sonar coverage so you track structure and fish without swapping cables.

Key Features

• Seamless dual-source sonar: run MEGA 360 with external 2D/MDI at the same time.
• One-port install: consolidates both signals into a single transducer plug.
• Clean, reliable rigging: fewer connections at the console or bow.
• Consistent coverage: keep 360° structure view plus target-separating 2D/MDI.
• Purpose-built compatibility: designed for select HELIX G3N/G4N models.

Compatibility (as provided)

MEGA 360; HELIX 15 MSI G4N, HELIX 15 MDI G4N; HELIX 12 MSI GPS G4N, HELIX 12 MDI GPS G4N, HELIX 12 MSI GPS G3N, HELIX 12 MDI GPS G3N; HELIX 10 MSI GPS G4N, HELIX 10 MDI GPS G4N, HELIX 10 MSI GPS G3N, HELIX 10 MDI GPS G3N; HELIX 9 MSI GPS G4N, HELIX 9 MDI GPS G4N, HELIX 9 MSI GPS G3N, HELIX 9 MDI GPS G3N; HELIX 8 MSI GPS G4N, HELIX 8 MSI GPS G3N.

Combine Sonar

Combines MEGA 360 Imaging and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same compatible HELIX fish finder.

Notice

Not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors. For that setup, use #720108-1 14 M360 2DDI Y.

Tech Specs — Humminbird 9 M360 2DDI Y

• Type: Y-cable for MEGA 360 + external 2D/MDI
• Head unit side: single 7-pin transducer plug
• Transducer sides: MEGA 360 branch + Dual Spectrum CHIRP/MEGA Imaging+ branch
• Cable length (Dual Spectrum/MDI branch): 30" (76 cm)
• Cable length (MEGA 360 branch): 10' (3 m)
• Warranty: 1-Year Limited Warranty
