Garmin ECHOMAP UHD2 95sv with GT54UHD & Canada + Alask GN

Garmin ECHOMAP UHD2 95sv — clear views, confident navigation

If you want power, control and precision in one unit, ECHOMAP UHD2 95sv delivers. The bright 9" touchscreen with keyed-assist stays readable in full sun. See sharp fish arches with Garmin traditional CHIRP and get high-contrast detail around your boat with ClearVü™ and SideVü™ scanning. It supports LiveScope™, comes with built-in Garmin Navionics+™ (Canada) and daily updates for one year, and adds multi-band GPS for accurate tracking when signals get weak or reflected. Built-in Wi-Fi® lets you share sonar, waypoints and routes with another UHD2, while NMEA 2000® keeps your networked gear on one screen.

Key features

• Sunlight-readable touchscreen for fast, confident control
• High-definition scanning with vivid palettes for crisp target separation
• LiveScope™ ready to watch fish and structure in real time
• Built-in charts (Canada) with daily updates via ActiveCaptain®
• Multi-band GPS accuracy to hold your line in tough signal areas
• Wireless sharing of sonar, waypoints and routes between UHD2 units
• Network friendly with NMEA 2000® for autopilots, audio and more
• Force® trolling motor integration for route follow and boatside control

What’s in the box

• ECHOMAP UHD2 95sv with Canada mapping
• GT54UHD-TM transducer
• Power/data cable

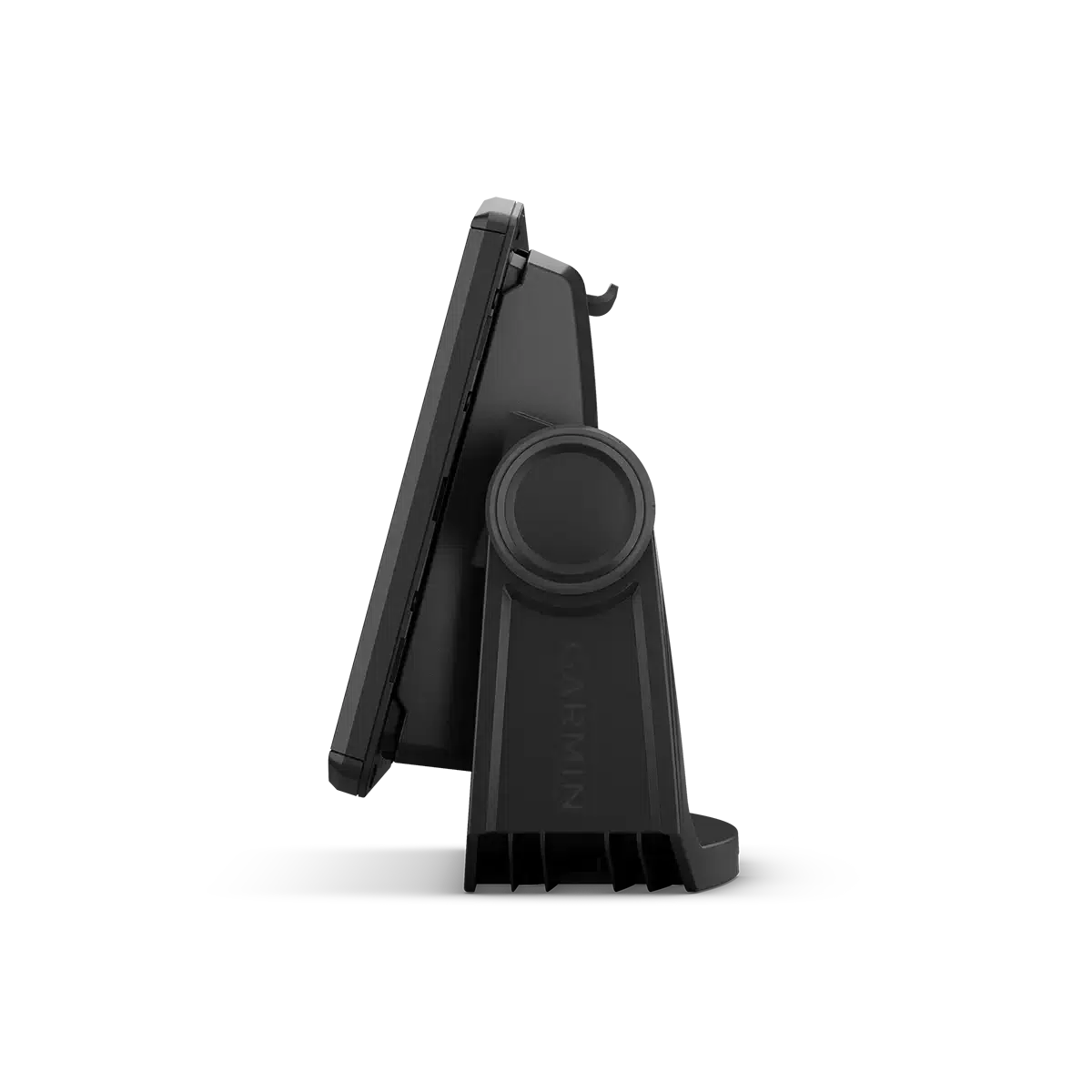

• Tilt/swivel mount with quick-release cradle
• Flush mount, protective cover, hardware, documentation

Tech Specs — ECHOMAP UHD2 95sv

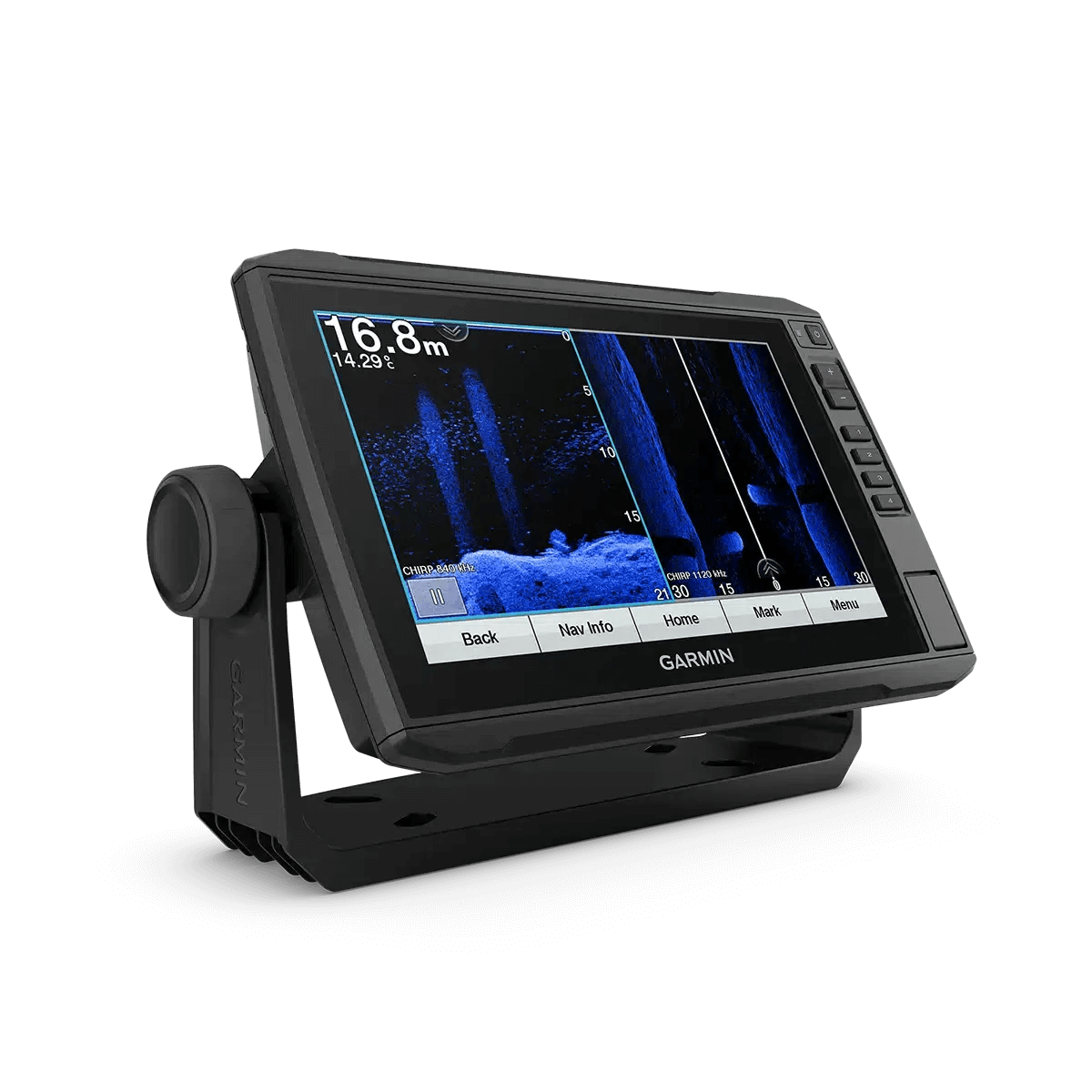

Display & build: 10.4″ x 6.5″ x 3.2″ (2.2 lb), 9.0″ WVGA TN, 1024×600; IPX7; bail or flush mount; touchscreen with keyed assist
Memory & nav: 1 microSD™ (max 32 GB); 5,000 waypoints; 50 tracks/50,000 points; 100 routes
Positioning: Built-in receiver 10 Hz; GPS, GLONASS, Galileo, BeiDou; WAAS; multi-band, multi-constellation
Built-in charts: Garmin Navionics+™ (inland & coastal, Canada) with daily updates for 1 year; Auto Guidance+™ downloadable via ActiveCaptain®; tide tables
Optional maps: Garmin Navionics+™, Vision+™, TOPO, Standard Mapping; Garmin Quickdraw Contours™

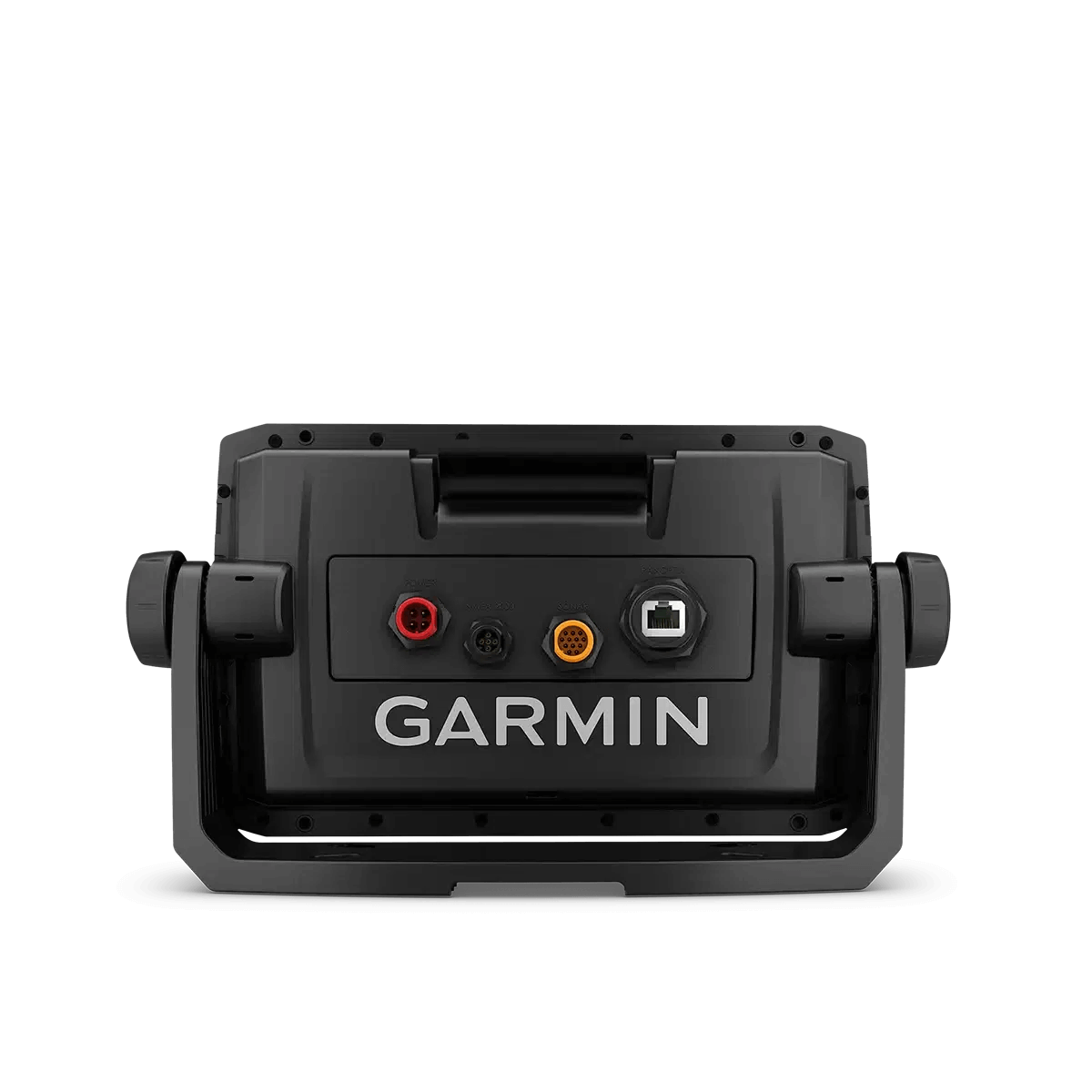

Networking: NMEA 2000®; Garmin Marine Network (1 port); 12-pin transducer (1); AIS/DSC/Fusion-Link™; Bluetooth®, ANT®, local Wi-Fi®
Sonar: 500 W; traditional CHIRP (single-channel, 50/77/83/200 kHz L/M/H), ClearVü™ and SideVü™ (260/455/800/1000/1200 kHz); Panoptix™ and LiveScope™ compatible
Power: 9–18 V DC; typical draw 1.72 A @12 V; max draw 3.5 A; max power 20.7 W @10 V

Notes: LiveScope sonar cannot be shared wirelessly between two ECHOMAP UHD2 chartplotters. Auto Guidance+ is for planning only and does not replace safe navigation.

Ready to fish with more confidence? Add ECHOMAP UHD2 95sv to your boat today.

Documentation

User manual (online)
