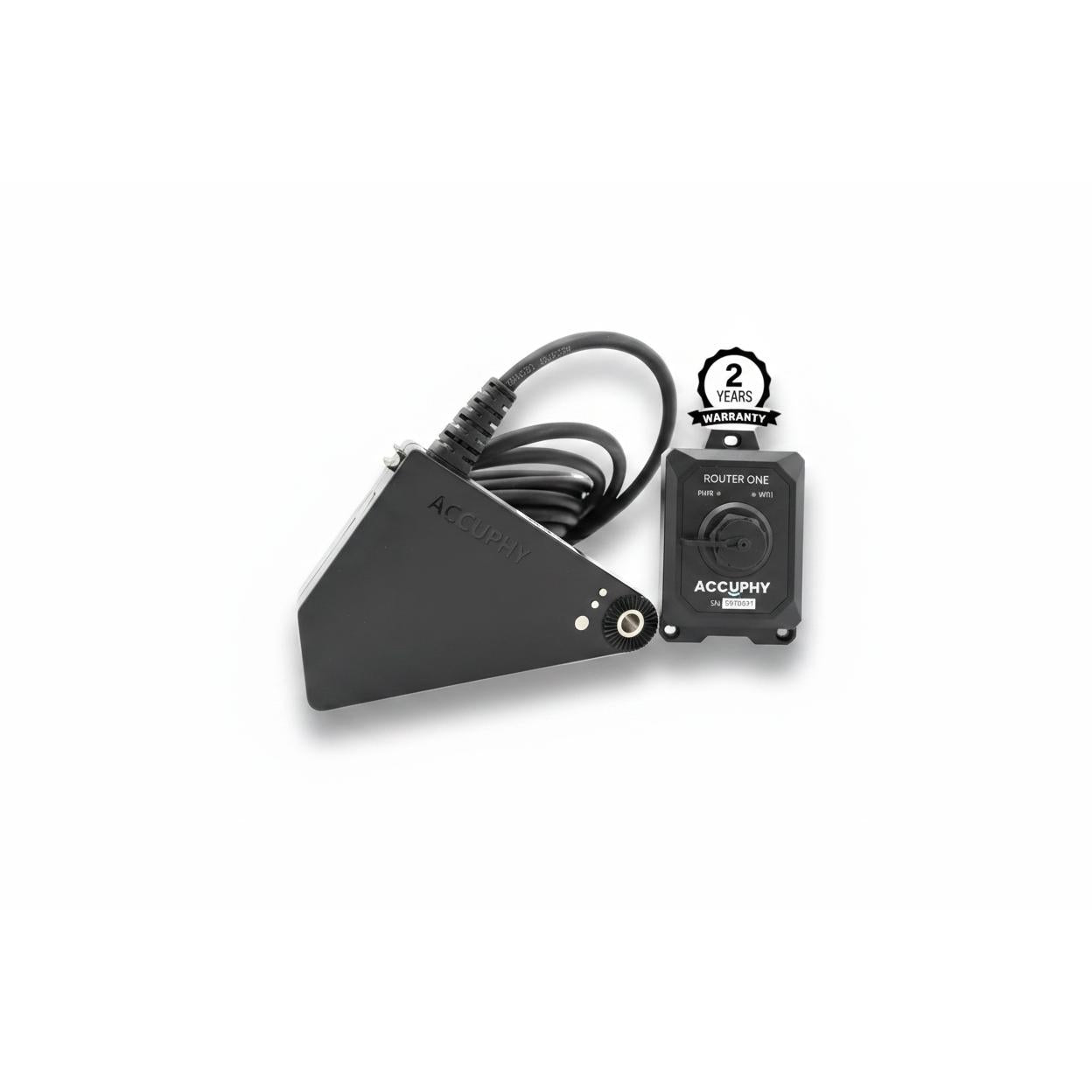

Accuphy Pinglive Mini

Designed to stay portable without sacrificing performance, the PingLive Mini sonar delivers real-time underwater imaging in a compact, lightweight format. Whether you're fishing from a kayak, a small boat, or setting up on the ice, this high-performance sonar fits perfectly into tight spaces while delivering the power of much larger systems.

• Live imaging: combo view + forward view + down view

  Take advantage of the industry's first combo view, allowing you to see forward and down views at the same time, giving you a much larger live image of what is in front of and below your boat simultaneously.

  Down View is designed to show activity below your boat with a 39-degree view or directly beneath an ice hole

Forward View covers a wide range of fishing situations

• Down View (Scan) + Traditional View (2D Chirp)

Down View (scan) produces a photographic image of structure, vegetation, and fish directly below the boat.

Traditional View delivers a color 2D display showing fish arches and bottom hardness.

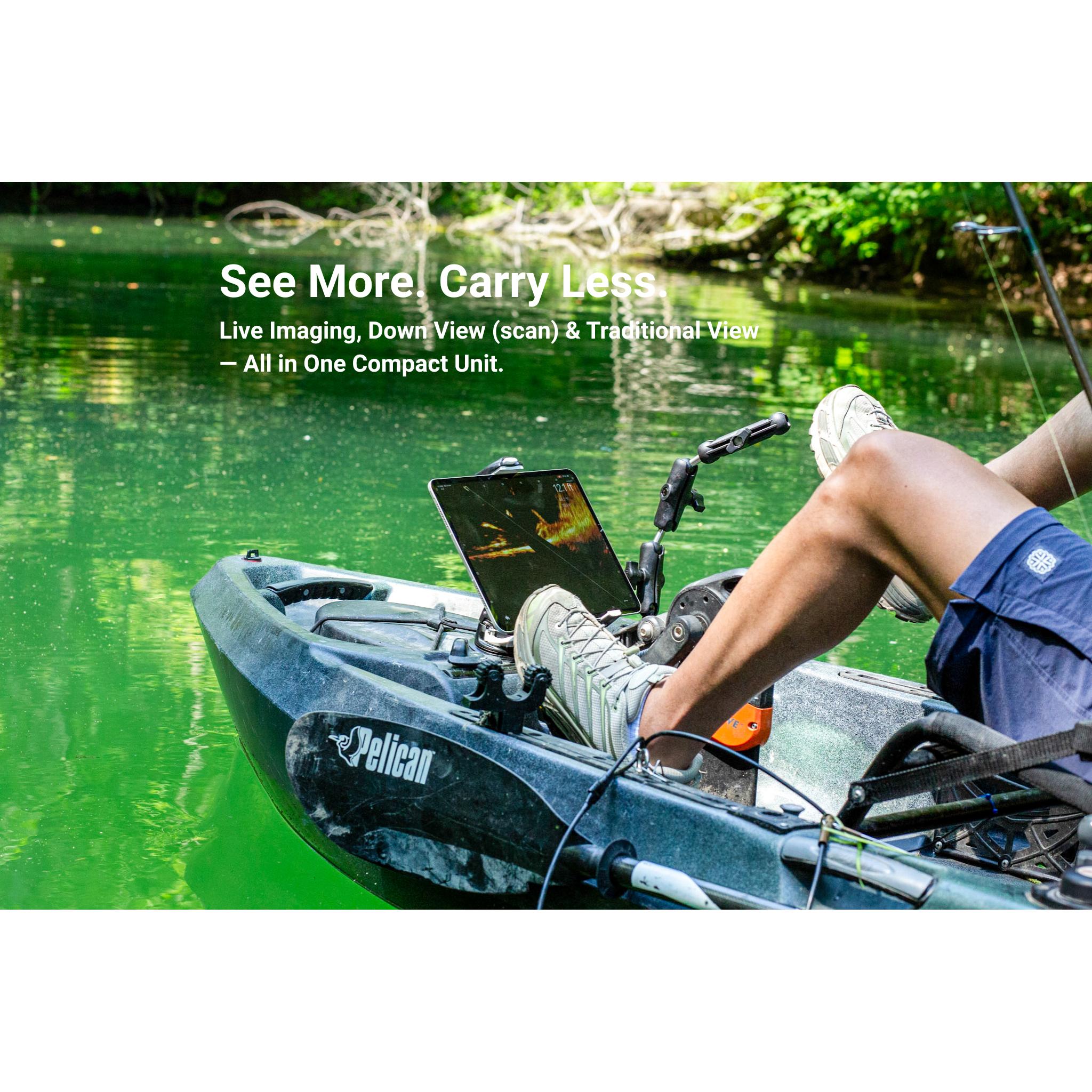

• Portability : At only 1.5 inches thick and 1.4 pounds, it is built so anglers can fish all year long.

• Simple power and connectivity : runs on 10–18 V DC and supports wired and optional wireless connections through the Accuphy WiFi router.

• iOS and Android : control and view live sonar data with the Accuphy Sonar app on compatible iOS and Android devices.

Whether you're drop-shot fishing from a boat or kayak, or jigging on the ice, the PingLive Mini gives you the advantage of live sonar: compact, clear, and built for serious anglers.

Compatible Devices

Find below the complete list of Apple and Android devices compatible with PingLive, so you can confirm that your device works perfectly.

Apple
Android

Is your device not listed?

You can test compatibility by downloading the beta version of the “Accuphy Sonar” Android app. Once installed, open the app, go to Settings, and enable Simulator mode. If the app runs correctly in Simulator mode, your device should have no problem using our products.

Find below the complete list of Apple and Android devices compatible with PingLive, so you can confirm that your device works perfectly.

Apple
Android

Is your device not listed?

You can test compatibility by downloading the beta version of the “Accuphy Sonar” Android app. Once installed, open the app, go to Settings, and enable Simulator mode. If the app runs correctly in Simulator mode, your device should have no problem using our products.

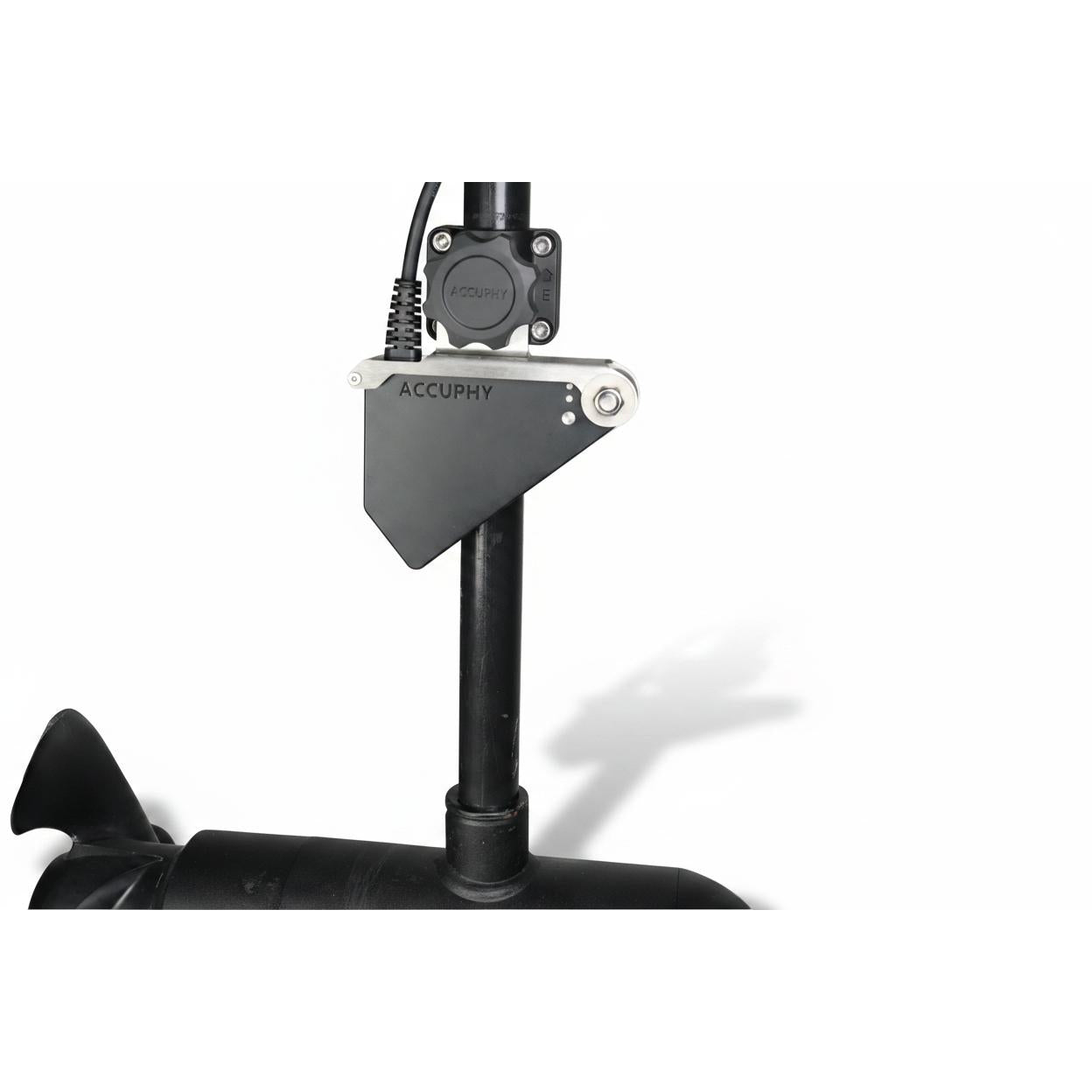

Transducer Specifications

• Dimensions: 12.5 x 10 x 2.3 cm, or 5 x 3.9 x 0.9 inches
• Weight: 0.6 kg or 1 lb 5 oz
• Transducer beam width: 39° (straight forward and straight down)
• Transducer cable length: 6 m or 20 feet
• Transducer pin count: 8
• Temperature range: 0°C to 40°C, or 32°F to 104°F

Electrical Parameters

• Power input: 10-18 V DC
• Power consumption: 12 W typical, 25 W max.

Sonar Parameters

• Frequency: 450 - 1,100 kHz
• Transmit power: 500 W
• Maximum range: 70.0 m or 230 ft (freshwater)

Connection Options

• Wireless: Accuphy Wi-Fi router (included)

Software

• iOS app (Accuphy Sonar)
• Android app (Accuphy Sonar)

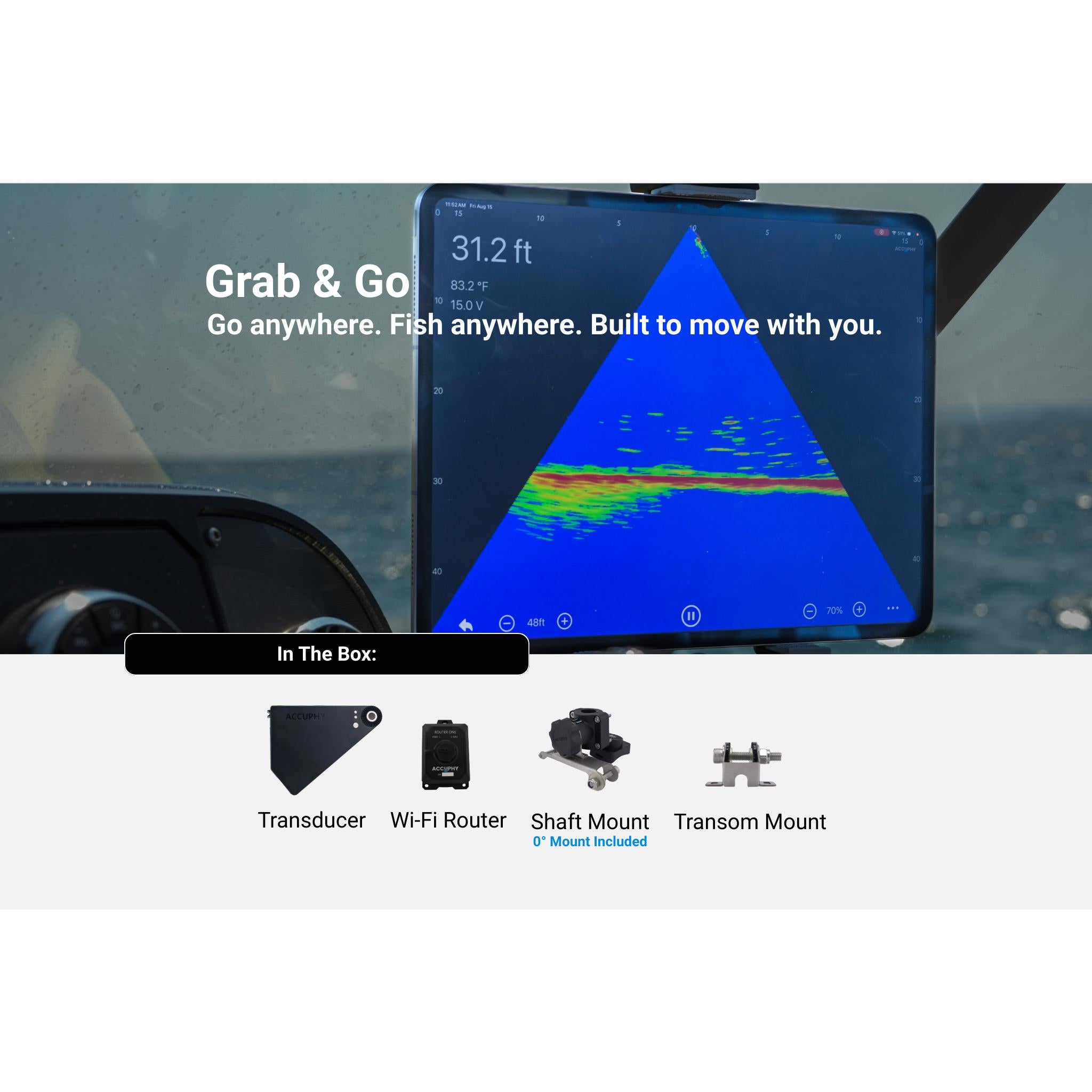

What’s in the box?


Take a Live Look
